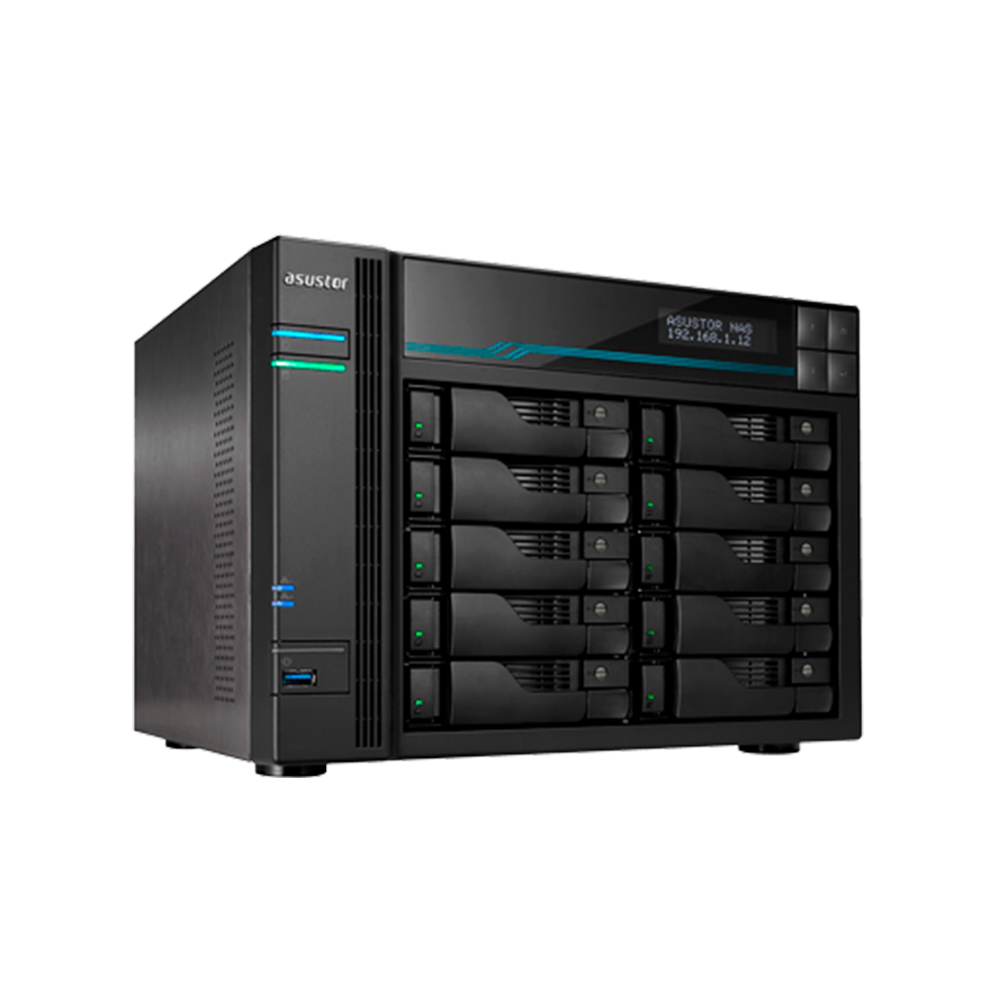

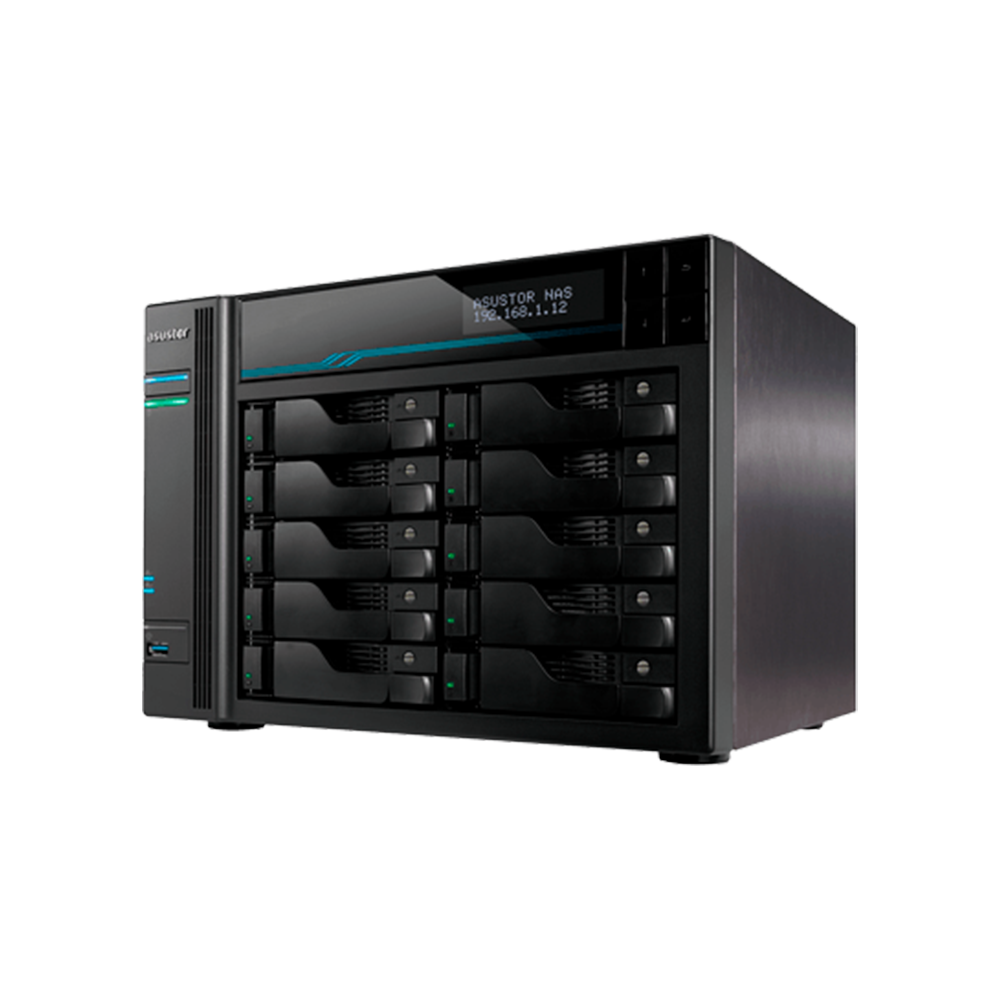

ASUSTOR Lockerstor 10 Pro AS7110T

ASUSTOR LOCKERSTOR 10 Pro AS7110T 10-bay NAS

#AS7110T

Intel Xeon 9th generation Quad-Core CPU
8GB of server-grade DDR4-2666 ECC memory (Max 64GB, 32GB x 2)
Dual M.2 NVMe SSD ports for fast caching
Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready. Supports virtualization and Docker apps
Brings the smoothest work experience with 10-Gigabit Ethernet, triple 2.5-Gigabit ports and USB 3.2 Gen2 ports.
Supports Wake on LAN (2.5-Gigabit ports )

Ask a Question

Guarantee safe & secure checkout

Free Shipping & Returns : On all order

Category : asustor

Description
Reviews (0)

Description

Specifications:

AS7110T Hardware Specifications
CPU	CPU Model	Intel Xeon E-2224
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad Core 3.4GHz up to 4.6GHz
Memory	Memory	8GB DDR4 ECC SO-DIMM
	Memory Module Pre-installed	8GB (1 x 8GB)
	Total Memory Slots	2
	Memory Expandable up to	64GB (2x 32GB) Support mixed capacity
	Flash Memory	8GB USB DOM
Storage	HDD	10 x SATA3 6Gb/s; 3.5″/2.5″ HDD/SSD
	M.2 Drive Slots (SSD Cache)	2x M.2 PCIe (NVMe) / SATA *M.2 2280, 2260, 2242.
	Maximum Internal Raw Capacity	180 TB (18 TB HDD X 10, Capacity may vary by RAID types)
	Maximum Drive Bays with	22
	Maximum Raw Capacity with Expansion Units	396 TB (18 TB HDD X 22, Capacity may vary by RAID types)
External Ports	Expansion	Front USB 3.2 Gen 1 x 1; Rear USB 3.2 Gen 2 x 2
	Network	10 Gigabit Ethernet x 1; 2.5 Gigabit Ethernet x 3
	HDMI Output	N/A
Others	System Fan	120mm x 2
	LCD Panel
	Power Supply Unit / Adapter	350W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK
Operation	Power Consumption	78.7W (Operation); 40.1W (Disk Hibernation); 5.8 W (Sleep Mode)
	Noise Level	22dB (HDD idle)
	Operation Temperature	0°C~40°C (32°F~104°F)
	Humidity	5% to 95% RH
Size and Weight	Size	215.5(H) x 293(W) x 230(D) mm
	Weight	7.1 (kg) / 15.62 (lb)

Pricing Notes:

Pricing and product availability subject to change without notice.

Reviews

There are no reviews yet.

Be the first to review “ASUSTOR Lockerstor 10 Pro AS7110T”

Quick Comparison

ASUSTOR Lockerstor 10 Pro AS7110T remove Asustor LOCKERSTOR 6 Gen3 (AS6806T) | Ryzen up to the challenge! remove ASUSTOR Lockerstor 10 AS6510T .,, remove LOCKERSTOR 10 Gen3 (AS6810T) | Ryzen up to the challenge! remove Asustor LOCKERSTOR 8 Gen3 (AS6808T) | Ryzen up to the challenge! remove ASUSTOR Lockerstor 4 AS6604T remove

Name ASUSTOR Lockerstor 10 Pro AS7110T remove Asustor LOCKERSTOR 6 Gen3 (AS6806T) | Ryzen up to the challenge! remove ASUSTOR Lockerstor 10 AS6510T .,, remove LOCKERSTOR 10 Gen3 (AS6810T) | Ryzen up to the challenge! remove Asustor LOCKERSTOR 8 Gen3 (AS6808T) | Ryzen up to the challenge! remove ASUSTOR Lockerstor 4 AS6604T remove


SKU

Rating

Rated 0 out of 5

Price

Stock

Available on backorder

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A

Additional information

Description

ASUSTOR LOCKERSTOR 10 Pro AS7110T 10-bay NAS

#AS7110T

Intel Xeon 9th generation Quad-Core CPU
8GB of server-grade DDR4-2666 ECC memory (Max 64GB, 32GB x 2)
Dual M.2 NVMe SSD ports for fast caching
Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready. Supports virtualization and Docker apps
Brings the smoothest work experience with 10-Gigabit Ethernet, triple 2.5-Gigabit ports and USB 3.2 Gen2 ports.
Supports Wake on LAN (2.5-Gigabit ports )

Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
2x USB4 ports at 40 Gbps
3x USB 3.2 Gen 2 Type-A at 10 Gbps
2x 10-Gigabit Ethernet
2x 5-Gigabit Ethernet
Supports Wake on LAN and Wake on WAN (5 GbE)

ASUSTOR LOCKERSTOR 10 AS6510T 10-bay NAS

#AS6510T

Intel Denverton-based Atom C3538 Quad-Core CPU
8GB DDR4-2133 SO-DIMM - 30% faster than DDR3
Dual Intel 10-Gigabit Ethernet ports - Supports up to 20 Gbps under Link Aggregation
Dual Realtek 2.5-Gigabit Ethernet ports - Supports up to 5 Gbps under Link Aggregation
Supports 8x 3½" SATA hard drives
Dual M.2 NVMe SSD ports for fast caching
Supports an extra 128 TB with the AS6004U
Thumbscrews for easy M.2 SSD installation
Supports Wake on LAN and Wake on WAN
Efficient cooling design
Best in class three year warranty

Specification	Details
Model Options	Lockerstor 10 Gen 3 (AS6810T)
Processor	AMD Ryzen V3000 (Embedded), Quad-Core, 2.3 GHz base clock, 3.8 GHz turbo clock
Processor Architecture	Zen 3+ (Rembrandt), 6 nm process (Socket FP7)4
Memory	16GB DDR5 ECC (expandable up to 64GB)
Memory Speed	DDR5-4800 MT/s, Dual-channel, ECC supported
PCIe Lanes	20 lanes, PCIe Gen 4
Drive Bays	4 x 3.5″/2.5″ SATA HDD/SSD
M.2 NVMe Slots	4 x M.2 NVMe Gen 4 (PCIe Gen 4 x1 each slot)
Network Ports	2 x 10GbE RJ45 (Copper),,,,,, 2 x 5GbE RJ45 (Copper)
USB Ports	2 x USB4 (40 Gbps, Thunderbolt ), 3 x USB 3.2 Gen 2 Type-A (10 Gbps)
Cooling	1 x 120mm rear fan, additional copper finned heat pipe for CPU and M.2 slot cooling
Display Panel	Front-mounted LCD with configuration and system information
Power Supply	90W external adapter
Power Consumption	Idle: ~30-32W, Moderate Load: ~38-50W
Max Supported Drive Capacity	Up to 24TB per bay for SATA HDDs (depends on compatibility list)
RAID Levels Supported	Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
File Systems	Internal: EXT4, Btrfs; External: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT
Software	ADM 5 (Asustor Data Manager)
Virtualization Support	Supports Docker, Virtual Machines, and Container Station
Other Features	SMB Multichannel,,,,,, Snapshot Center,,,,,, DataSync Center,,,, Cloud Backup Center, ,,,,MyArchive cold storage
Warranty	3 years
Dimensions	185.5(H) x 170(W) x 230(D) mm
Weight	3.2 kg / 7.06 lbs
