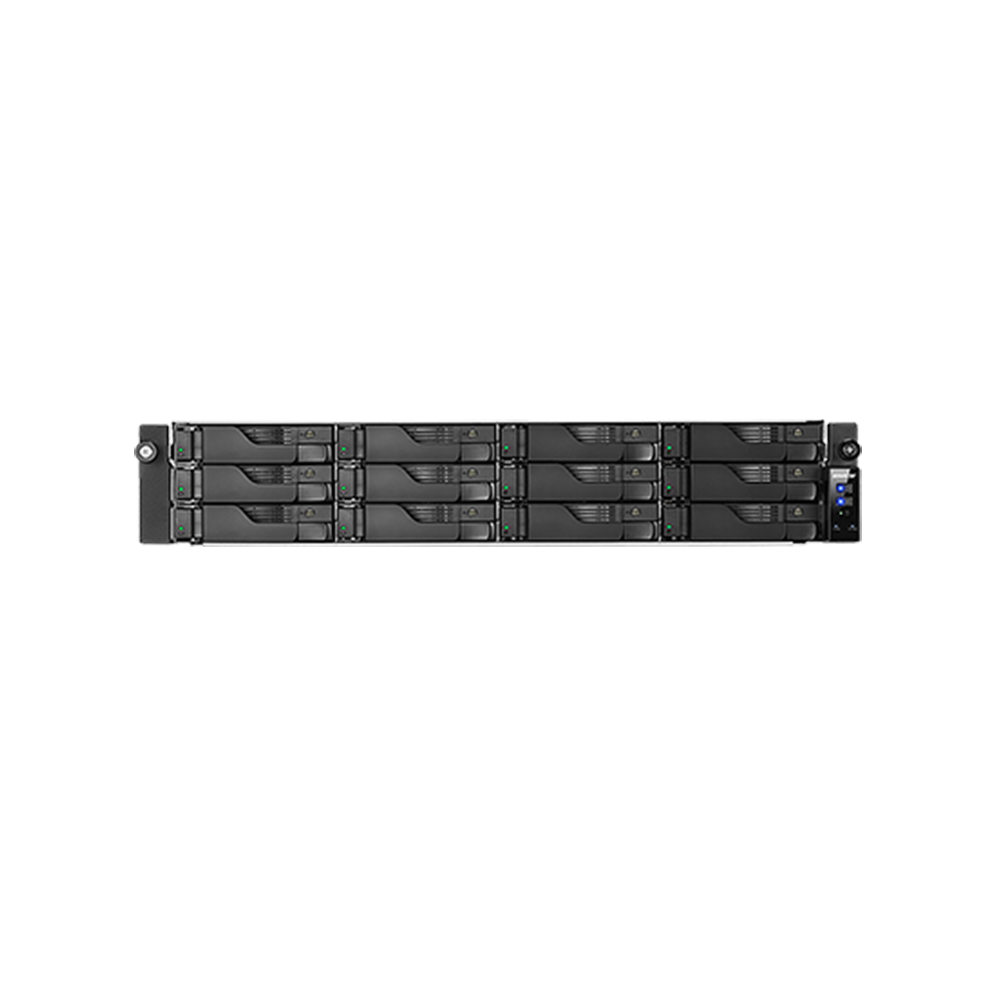

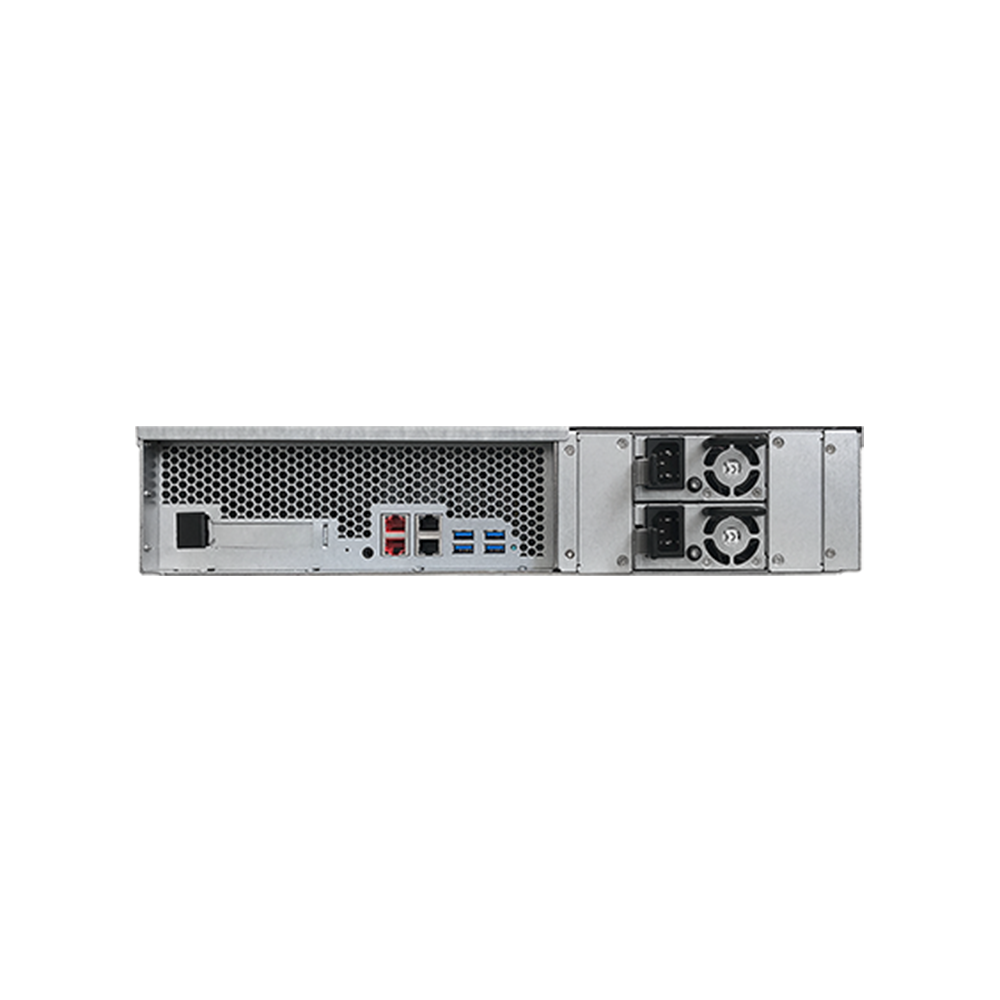

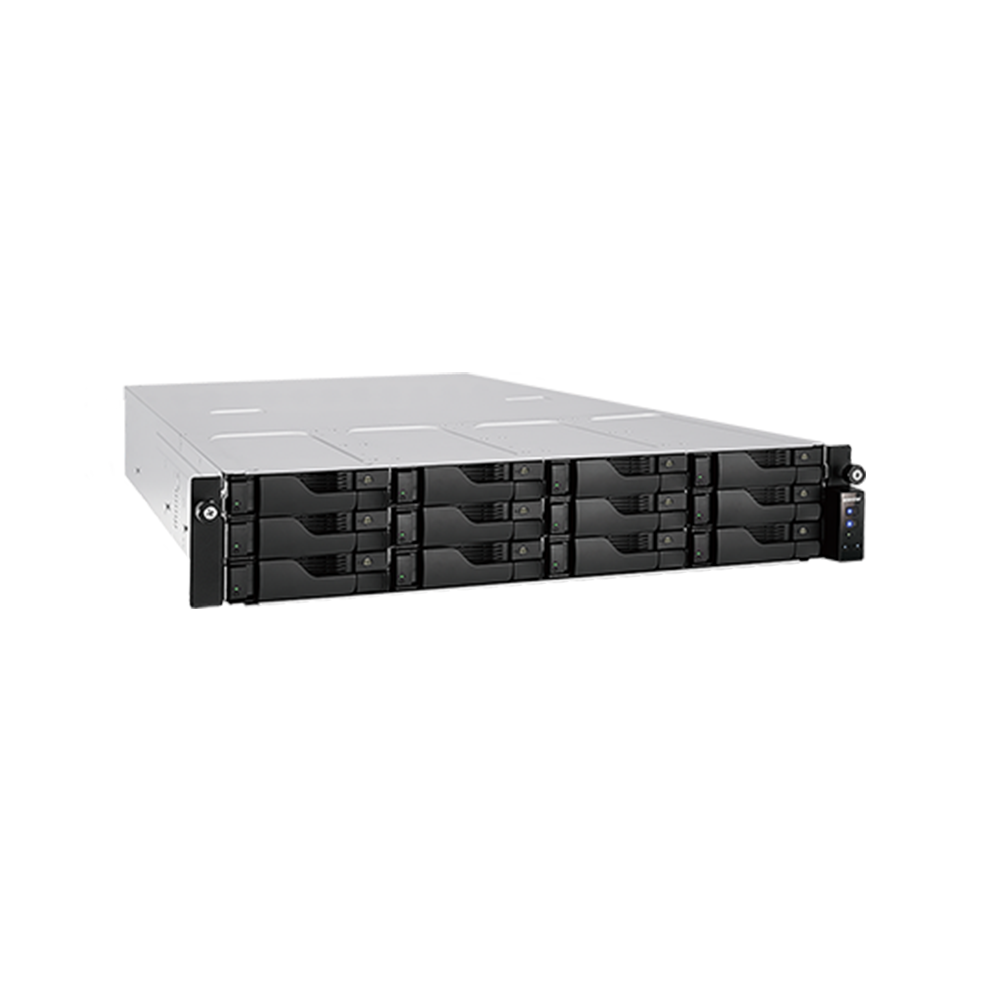

ASUSTOR Lockerstor 12RD AS6512RD

ASUSTOR LOCKERSTOR 12RD AS6512RD 4-bay NAS

#AS6512RD

Intel Atom C3538 2.1GHz Quad-Core CPU
8 GB DDR4-2133 – 128 GB maximum
Two Gigabit Ethernet and two 2.5-Gigabit Ethernet ports. Can provide up to 5 gbps when aggregated.
Supports Wake-on-LAN and Wake-on-WAN

Ask a Question

Guarantee safe & secure checkout

Free Shipping & Returns : On all order

Categories : asustor, Power User to Business

Description
Reviews (0)

Description

Specifications:

115W (Operation)
67W (Disk Hibernation)

Hardware Specifications
CPU	CPU Model	Intel ATOM C3538
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.1GHz
Memory	Memory	8GB SO-DIMM DDR4 Compatibility
	Memory Module Pre-installed	8GB (1x 8GB)
	Total Memory Slots	4
	Memory Expandable up to	128GB (4x 32GB) Installation Guide Support mixed capacity
	Flash Memory	8GB eMMC
Storage	Drive Bays	12
	Compatible Drive Type	3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD
	Maximum Drive Bays with Expansion Unit	24
External Ports	Expansion	4x USB 3.2 Gen 1
	Network	2x Gigabit Ethernet (1G/100M) ; 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
	PCIe Expansion Slots	PCIe 3.0 x8 slot (black, x4 link)
	HDMI Output	N/A
Others	System Fan	2x 60mm
	LCD Panel	Yes
	Power Supply Unit / Adapter	350W x2
	Input Power Voltage	100V to 240V AC
	Redundant power supply	Yes
	Service LED Indicator	Yes
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
Operation	Power Consumption
	Noise Level	–
	Operation Temperature	0°C~40°C (32°F~104°F)
	Humidity	5% to 95% RH
Size and Weight	Size	88(H) x 439(W) x 535(D) mm
	Weight	11.7kg / 25.74lb

Pricing Notes:

Pricing and product availability subject to change without notice.

Reviews

There are no reviews yet.

Be the first to review “ASUSTOR Lockerstor 12RD AS6512RD”

Quick Comparison

ASUSTOR Lockerstor 12RD AS6512RD remove ASUSTOR Lockerstor 12R Pro AS7112RDX remove ASUSTOR Lockerstor 4 AS6604T remove ASUSTOR Lockerstor 10 AS6510T .,, remove ASUSTOR Lockerstor 16R Pro AS7116RDX , remove LOCKERSTOR 10 Gen3 (AS6810T) | Ryzen up to the challenge! remove

Name ASUSTOR Lockerstor 12RD AS6512RD remove ASUSTOR Lockerstor 12R Pro AS7112RDX remove ASUSTOR Lockerstor 4 AS6604T remove ASUSTOR Lockerstor 10 AS6510T .,, remove ASUSTOR Lockerstor 16R Pro AS7116RDX , remove LOCKERSTOR 10 Gen3 (AS6810T) | Ryzen up to the challenge! remove


SKU

Rating

Rated 0 out of 5

Price

Stock

Available on backorder

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A

Additional information

Description

ASUSTOR LOCKERSTOR 12RD AS6512RD 4-bay NAS

#AS6512RD

Intel Atom C3538 2.1GHz Quad-Core CPU
8 GB DDR4-2133 - 128 GB maximum
Two Gigabit Ethernet and two 2.5-Gigabit Ethernet ports. Can provide up to 5 gbps when aggregated.
Supports Wake-on-LAN and Wake-on-WAN

ASUSTOR LOCKERSTOR 12R Pro AS7112RDX 12-bay NAS

#AS7112RDX

Intel Xeon 9th generation Quad-Core CPU
Server-grade ECC memory: 8 GB ECC DDR4-2666 (Max 128GB, 32GB x 4)
2U chassis design, 12 SATA drive bays
Dual M.2 NVMe SSD ports for fast caching
Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready.
Supports Virtualization and Docker apps
PCIe slots for 10/25/40/50 Gigabit Ethernet cards as well as SAS cards.
Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications

ASUSTOR LOCKERSTOR 4 AS6604T 4-bay NAS

#AS6604T

Intel quad-core processor provides exceptional reliability and stability
Two 2.5 GbE ports with up to 5 Gbps under Link Aggregation
Dual M.2 NVMe SSD ports for fast caching
Overwhelming 4K experience
Intel Celeron quad core CPU - 30% faster than previous generation.
4GB DDR4-2400 - 30% faster than DDR3
Supports Wake on LAN and Wake on WAN

ASUSTOR LOCKERSTOR 10 AS6510T 10-bay NAS

#AS6510T

Intel Denverton-based Atom C3538 Quad-Core CPU
8GB DDR4-2133 SO-DIMM - 30% faster than DDR3
Dual Intel 10-Gigabit Ethernet ports - Supports up to 20 Gbps under Link Aggregation
Dual Realtek 2.5-Gigabit Ethernet ports - Supports up to 5 Gbps under Link Aggregation
Supports 8x 3½" SATA hard drives
Dual M.2 NVMe SSD ports for fast caching
Supports an extra 128 TB with the AS6004U
Thumbscrews for easy M.2 SSD installation
Supports Wake on LAN and Wake on WAN
Efficient cooling design
Best in class three year warranty

ASUSTOR LOCKERSTOR 16R Pro AS7116RDX 16-bay NAS

#AS7116RDX

Intel Xeon 9th generation Quad-Core CPU
Server-grade ECC memory: 8 GB ECC DDR4-2666 (Max 128GB, 32GB x 4)
2U chassis design, 12 SATA drive bays
Dual M.2 NVMe SSD ports for fast caching
Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready.
Supports Virtualization and Docker apps
PCIe slots for 10/25/40/50 Gigabit Ethernet cards as well as SAS cards.
Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications

Specification	Details
Model Options	Lockerstor 10 Gen 3 (AS6810T)
Processor	AMD Ryzen V3000 (Embedded), Quad-Core, 2.3 GHz base clock, 3.8 GHz turbo clock
Processor Architecture	Zen 3+ (Rembrandt), 6 nm process (Socket FP7)4
Memory	16GB DDR5 ECC (expandable up to 64GB)
Memory Speed	DDR5-4800 MT/s, Dual-channel, ECC supported
PCIe Lanes	20 lanes, PCIe Gen 4
Drive Bays	4 x 3.5″/2.5″ SATA HDD/SSD
M.2 NVMe Slots	4 x M.2 NVMe Gen 4 (PCIe Gen 4 x1 each slot)
Network Ports	2 x 10GbE RJ45 (Copper),,,,,, 2 x 5GbE RJ45 (Copper)
USB Ports	2 x USB4 (40 Gbps, Thunderbolt ), 3 x USB 3.2 Gen 2 Type-A (10 Gbps)
Cooling	1 x 120mm rear fan, additional copper finned heat pipe for CPU and M.2 slot cooling
Display Panel	Front-mounted LCD with configuration and system information
Power Supply	90W external adapter
Power Consumption	Idle: ~30-32W, Moderate Load: ~38-50W
Max Supported Drive Capacity	Up to 24TB per bay for SATA HDDs (depends on compatibility list)
RAID Levels Supported	Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
File Systems	Internal: EXT4, Btrfs; External: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT
Software	ADM 5 (Asustor Data Manager)
Virtualization Support	Supports Docker, Virtual Machines, and Container Station
Other Features	SMB Multichannel,,,,,, Snapshot Center,,,,,, DataSync Center,,,, Cloud Backup Center, ,,,,MyArchive cold storage
Warranty	3 years
Dimensions	185.5(H) x 170(W) x 230(D) mm
Weight	3.2 kg / 7.06 lbs
