ATTO Technology ThunderLink 5322 2-Port SFP+ 32G Thunderbolt 5 Module with Long-Range Transceivers

2 x 32G SFP+ Slots
2 x Thunderbolt 5 Ports
Advanced Data Streaming Technology
Includes Long-Range SM SFP+ Transceivers
Works with Windows, macOS & Linux

Ask a Question

Guarantee safe & secure checkout

Free Shipping & Returns : On all order

Category : ATTO Tag : atto Brand: Atto

Description

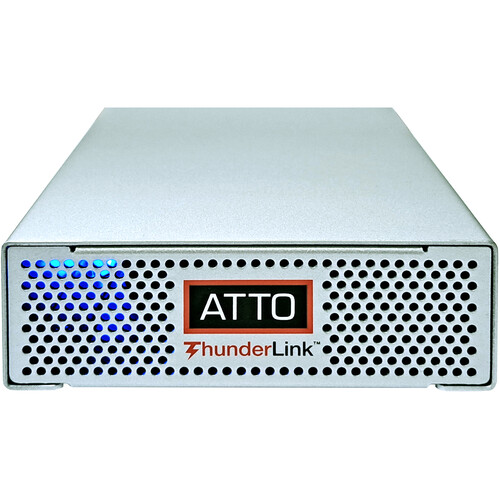

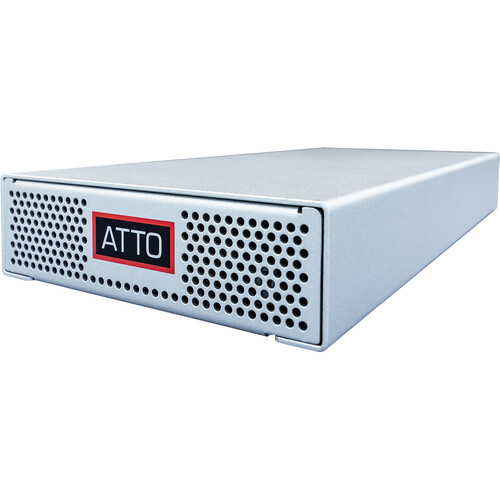

ATTO Technology 5322 Overview

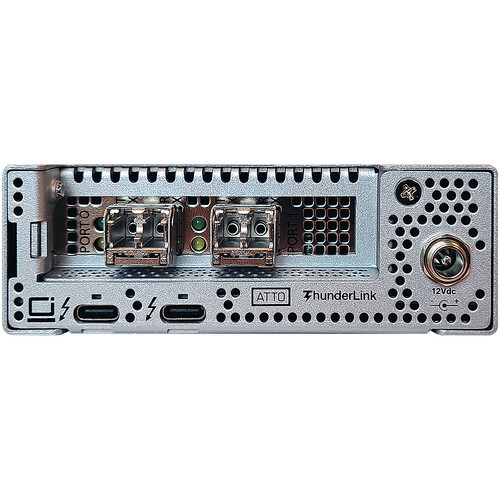

Enhance your high-bandwidth workflow with the ATTO ThunderLink 5322 2-Port SFP+ 32G Thunderbolt 5 Module. Connecting this adapter to an available Thunderbolt 5 port adds two SFP+ slots, each supporting up to 32 Gb/s fiber links to compatible network devices using the included long-range, single-mode transceivers. The second Thunderbolt 5 port may be used to daisy chain up to 80 Gb/s compatible devices and monitors.

This adapter is designed to work with Windows, macOS, and Linux-based systems.

ATTO Advanced Data Streaming Technology

ATTO Advanced Data Streaming (ADS) Technology is designed to manage latency in high-bandwidth work environments. ADS provides controlled acceleration of data transfers by utilizing a combination of features to quickly and efficiently move large amounts of data.

Additional information

Brand	Atto

Reviews

There are no reviews yet.

Be the first to review “ATTO Technology ThunderLink 5322 2-Port SFP+ 32G Thunderbolt 5 Module with Long-Range Transceivers”

Quick Comparison

ATTO Technology ThunderLink 5322 2-Port SFP+ 32G Thunderbolt 5 Module with Long-Range Transceivers remove ATTO Technology ThunderLink 5254 4-Port SFP28 25G Thunderbolt 5 Module remove ATTO Technology FastFrame N412 Dual-Channel 100 Gb/s PCIe 4.0 x16 SmartNIC remove ATTO Technology ExpressNVM S4FF Adapter remove ATTO Technology ExpressSAS H120FGT 16-Port Internal 12Gb SAS/SATA to PCIe 4.0 Adapter remove ATTO Technology ThunderLink 5252 2-Port SFP28 25G Thunderbolt 5 Module remove

Name ATTO Technology ThunderLink 5322 2-Port SFP+ 32G Thunderbolt 5 Module with Long-Range Transceivers remove ATTO Technology ThunderLink 5254 4-Port SFP28 25G Thunderbolt 5 Module remove ATTO Technology FastFrame N412 Dual-Channel 100 Gb/s PCIe 4.0 x16 SmartNIC remove ATTO Technology ExpressNVM S4FF Adapter remove ATTO Technology ExpressSAS H120FGT 16-Port Internal 12Gb SAS/SATA to PCIe 4.0 Adapter remove ATTO Technology ThunderLink 5252 2-Port SFP28 25G Thunderbolt 5 Module remove


SKU

Rating

Rated 0 out of 5

Price

Stock

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A

Additional information

Brand	Atto

Description

2 x 32G SFP+ Slots
2 x Thunderbolt 5 Ports
Advanced Data Streaming Technology
Includes Long-Range SM SFP+ Transceivers
Works with Windows, macOS & Linux

4 x 25G SFP28 Slots
2 x Thunderbolt 5 Ports
Advanced Data Streaming Technology
Includes SFP28 Transceiver Modules
Low-Profile Design
Works with Windows, macOS & Linux

ATTO FastFrame N412 (2 x Transceiver Included) – Technical Specifications

Product SKU	FFRM-N412-000
Form Factor	Low profile PCIe plug-in card
PCIe Interface	PCIe 4.0 x16 (mechanical and electrical)
Number of Ports	2 (Dual-port)
Connector Type	QSFP28
Included Modules	QSFP28 module(s) included
Supported Speeds	10/25/40/50/100GbE
Maximum Throughput	100Gb/s per port
Minimum Latency	Approximately 1µs
Operating Systems Support	macOS, Windows, Windows Server, Linux
Network/Transport Protocol	TCP/IP, UDP/IP
Advanced Features	MSI-X, MSI, DCA, RoCE, NVGRE, PCI-SIG SR-IOV-ready, Erasure Coding offload, RDMA support, end-to-end encryption, RSS, TSS, ADS
Hardware Offloads	TCP/UDP/IP stateless offloads, NVMe over Fabrics target offload (100Gb only)
IEEE Standards	IEEE 802.3ad (Link aggregation), IEEE 802.1qbb (Priority flow control)
Operating Temperature	0-55°C
Maximum Junction Temperature	110°C
Required Airflow	225 LFM DAC, 420 LFM optics
Operating Humidity	10-90% non-condensing
Storage Temperature	-40°C to 70°C
Storage Humidity	5-95% non-condensing
Agency Approvals	FCC Part 15 Subpart B, Class A; EN55022: 2010, Class A; EN55024: 2010
Compliance	EN60950-1, EN60825-1, EN60825-2, RoHS, TAA Compliant
Warranty	3-year standard product warranty
Package Contents	ATTO FastFrame Ethernet SmartNIC adapter, low profile bracket, QSFP28 module(s)
Recommended Applications	AI workloads, GPU computing, core Ethernet infrastructure, video post-production, digital imaging, data analytics, hyper-converged servers
