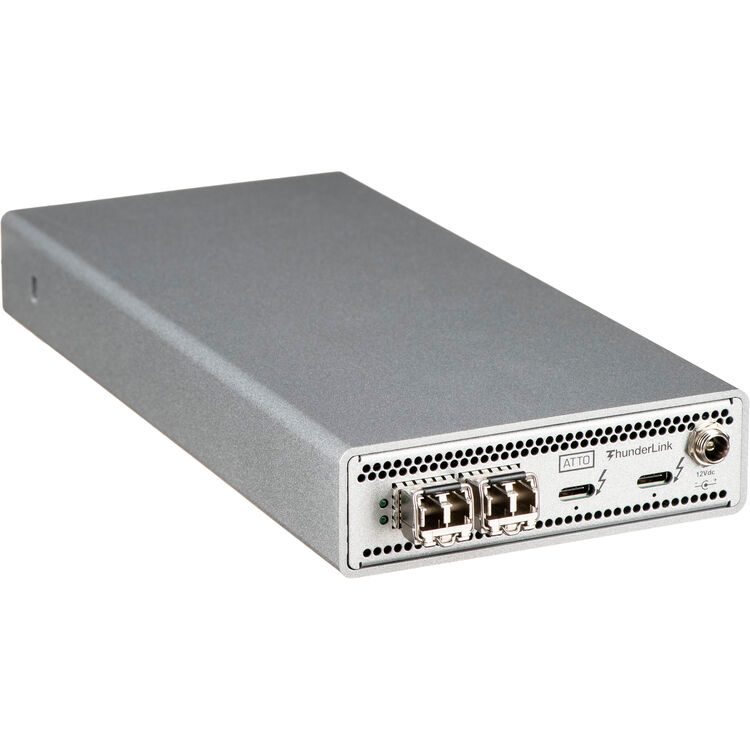

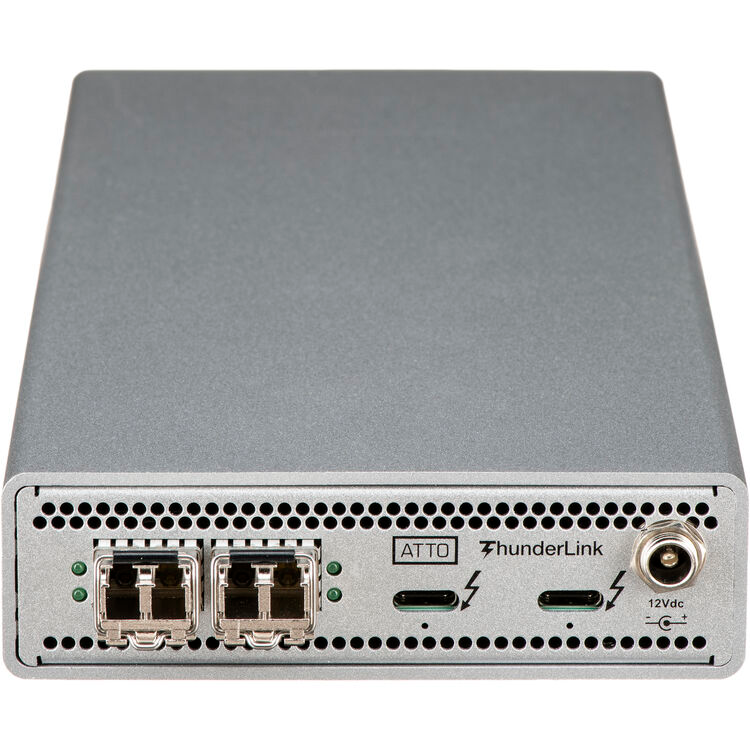

ATTO Technology Dual Thunderbolt 3 to 10Gb Ethernet Adapter

Daisy Chain up to 5 Thunderbolt Devices
Advanced Data Streaming
2 x 40 Gb/s Thunderbolt 3 USB Type-C
2 x 10 Gb/s Ethernet / 1 Gb/s SFP+ Ports
Optical SFP+ LC Modules Included

Ask a Question

Guarantee safe & secure checkout

Free Shipping & Returns : On all order

Description
Reviews (0)

Description

ATTO Technology N3 3102 Overview

Manage high-bandwidth applications such as data backup and restoration, clustered computing, video rendering, and more with the ATTO ThunderLink Dual Thunderbolt 3 to 10Gb Ethernet Adapter. This adapter connects Thunderbolt workstations to 10 Gb/s Ethernet networks and storage devices. It also includes optical SFP+ LC adapters for increased network compatibility.

ATTO’s Advanced Data Streaming technology is built in, which is designed to help maximize CPU processes for smooth and reliable data transfers. You can also take advantage of the 40 Gb/s Thunderbolt 3 port to connect and daisy chain up to 5 compatible devices.

Advanced Data Streaming

ATTO adapters manage latency using Advanced Data Streaming to help ensure smooth and consistent data streaming performance for high-bandwidth applications. Features include Bus Mastering, which bypasses the host CPU to transfer data directly between the adapter and system memory, advanced algorithms for optimized performance, and more.

Items Included

ATTO Technology Dual Thunderbolt 3 to 10Gb Ethernet Adapter
110V Power Cord
2 x Optical SFP+ LC Modules
Limited 3-Year Manufacturer Warranty

Reviews

There are no reviews yet.

Be the first to review “ATTO Technology Dual Thunderbolt 3 to 10Gb Ethernet Adapter”

Quick Comparison

ATTO Technology Dual Thunderbolt 3 to 10Gb Ethernet Adapter remove ATTO Technology ThunderLink 5252 2-Port SFP28 25G Thunderbolt 5 Module remove ATTO Technology ThunderLink 5252 2-Port SFP28 25G Thunderbolt 5 Module remove ATTO Technology FastFrame N412 Dual-Channel 100 Gb/s PCIe 4.0 x16 SmartNIC remove ATTO Technology ThunderLink FC 3162 Thunderbolt 3 to 16 Gb/s Fiber Channel (UK/EMEA Power Cords) remove ATTO Technology ThunderLink 5322 2-Port SFP+ 32G Thunderbolt 5 Module remove

Name ATTO Technology Dual Thunderbolt 3 to 10Gb Ethernet Adapter remove ATTO Technology ThunderLink 5252 2-Port SFP28 25G Thunderbolt 5 Module remove ATTO Technology ThunderLink 5252 2-Port SFP28 25G Thunderbolt 5 Module remove ATTO Technology FastFrame N412 Dual-Channel 100 Gb/s PCIe 4.0 x16 SmartNIC remove ATTO Technology ThunderLink FC 3162 Thunderbolt 3 to 16 Gb/s Fiber Channel (UK/EMEA Power Cords) remove ATTO Technology ThunderLink 5322 2-Port SFP+ 32G Thunderbolt 5 Module remove


SKU

Rating

Rated 0 out of 5

Price

Stock

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A

Additional information

Description

Daisy Chain up to 5 Thunderbolt Devices
Advanced Data Streaming
2 x 40 Gb/s Thunderbolt 3 USB Type-C
2 x 10 Gb/s Ethernet / 1 Gb/s SFP+ Ports
Optical SFP+ LC Modules Included

2 x 25G SFP28 Slots
2 x Thunderbolt 5 Ports
Advanced Data Streaming Technology
Includes SFP28 Transceiver Modules
Low-Profile Design
Works with Windows, macOS & Linux

2 x 25G SFP28 Slots
2 x Thunderbolt 5 Ports
Advanced Data Streaming Technology
Includes SFP28 Transceiver Modules
Low-Profile Design

ATTO FastFrame N412 (2 x Transceiver Included) – Technical Specifications

Product SKU	FFRM-N412-000
Form Factor	Low profile PCIe plug-in card
PCIe Interface	PCIe 4.0 x16 (mechanical and electrical)
Number of Ports	2 (Dual-port)
Connector Type	QSFP28
Included Modules	QSFP28 module(s) included
Supported Speeds	10/25/40/50/100GbE
Maximum Throughput	100Gb/s per port
Minimum Latency	Approximately 1µs
Operating Systems Support	macOS, Windows, Windows Server, Linux
Network/Transport Protocol	TCP/IP, UDP/IP
Advanced Features	MSI-X, MSI, DCA, RoCE, NVGRE, PCI-SIG SR-IOV-ready, Erasure Coding offload, RDMA support, end-to-end encryption, RSS, TSS, ADS
Hardware Offloads	TCP/UDP/IP stateless offloads, NVMe over Fabrics target offload (100Gb only)
IEEE Standards	IEEE 802.3ad (Link aggregation), IEEE 802.1qbb (Priority flow control)
Operating Temperature	0-55°C
Maximum Junction Temperature	110°C
Required Airflow	225 LFM DAC, 420 LFM optics
Operating Humidity	10-90% non-condensing
Storage Temperature	-40°C to 70°C
Storage Humidity	5-95% non-condensing
Agency Approvals	FCC Part 15 Subpart B, Class A; EN55022: 2010, Class A; EN55024: 2010
Compliance	EN60950-1, EN60825-1, EN60825-2, RoHS, TAA Compliant
Warranty	3-year standard product warranty
Package Contents	ATTO FastFrame Ethernet SmartNIC adapter, low profile bracket, QSFP28 module(s)
Recommended Applications	AI workloads, GPU computing, core Ethernet infrastructure, video post-production, digital imaging, data analytics, hyper-converged servers
