ATTO Technology ThunderLink FC 3162 Thunderbolt 3 to 16 Gb/s Fiber Channel (UK/EMEA Power Cords)

2 x 40 Gb/s Thunderbolt 3 Ports
2 x 16 Gb/s Fiber Channel with Optics
Thunderbolt Certified for Windows & Mac
Advanced Data Streaming Technology
Real-Time Streaming of Full HD & 4K
Low Profile Form Factor
Kensington Security Slot
Locking Power Supply

Ask a Question

Guarantee safe & secure checkout

Free Shipping & Returns : On all order

Category : ATTO Tag : atto Brand: Atto

Description
Reviews (0)

Description

ATTO Technology FC 3162 Overview

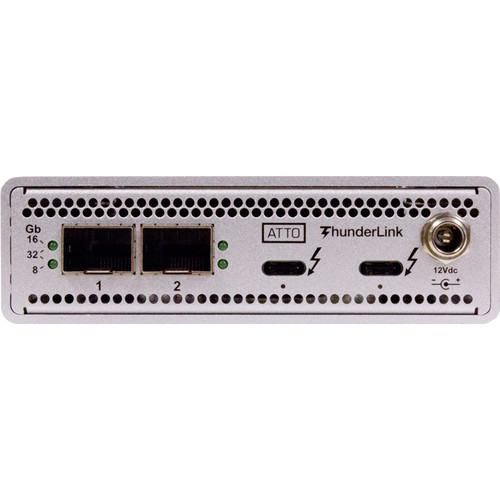

The ThunderLink FC 3162 Thunderbolt 3 to 16 Gb/s Fiber Channel from ATTO Technology acts as an external Thunderbolt 3 to fiber channel adapter that helps in connecting Thunderbolt-enabled workbooks and mobile workstations to 16 Gb/s fiber channel networks and storage devices. With dual channel configurations, the 16 Gb/s fiber channel adapter is an ideal solution for failover and load balancing through the MultiPath Director. In addition, the adapter comes with ADS (Advanced Data Streaming) technology and the ATTO ConfigTool for customized performance settings.

General Features

Able to achieve maximum line rate of Thunderbolt 3

Two optical SFP+ LC modules included

Dual port 40 Gb/s Thunderbolt 3 with DisplayPort and device daisy-chain support

ADS (Advanced Data Streaming) technology

Auto negotiation to 16 Gb, 8 Gb, and 4 Gb devices

Supports Windows 7 and later and macOS Sierra and later

ATTO ConfigTool and a graphical user interface for customized performance settings

RoHS compliant

Kensington Security Slot for additional security

Includes locking power supply to fasten directly and securely with ATTO Thunderbolt adapters

Items Included

ATTO Technology ThunderLink FC 3162 Thunderbolt 3 to 16 Gb/s Fiber Channel (UK/EMEA Power Cords)
2 x Optical SFP+ LC Modules
UK/EMEA Power Cords
Limited 3-Year Manufacturer Warranty

Reviews

There are no reviews yet.

Be the first to review “ATTO Technology ThunderLink FC 3162 Thunderbolt 3 to 16 Gb/s Fiber Channel (UK/EMEA Power Cords)”

Quick Comparison

ATTO Technology ThunderLink FC 3162 Thunderbolt 3 to 16 Gb/s Fiber Channel (UK/EMEA Power Cords) remove ATTO Technology FastFrame N422 Dual-Channel 25 Gb/s PCIe 3.0 x8 SmartNIC with SFP28 Optical Interface remove ATTO 32Gb Celerity (model 324P) Quad-Port Gen 7 Fibre Channel Adapter (SFPs included) remove ATTO Technology FastFrame N412 Dual-Channel 100 Gb/s PCIe 4.0 x16 SmartNIC remove ATTO Technology Dual Thunderbolt 3 to 10Gb Ethernet Adapter with EU Power Cords remove ATTO Technology ExpressSAS H1280GT Host Bus Adapter remove

Name ATTO Technology ThunderLink FC 3162 Thunderbolt 3 to 16 Gb/s Fiber Channel (UK/EMEA Power Cords) remove ATTO Technology FastFrame N422 Dual-Channel 25 Gb/s PCIe 3.0 x8 SmartNIC with SFP28 Optical Interface remove ATTO 32Gb Celerity (model 324P) Quad-Port Gen 7 Fibre Channel Adapter (SFPs included) remove ATTO Technology FastFrame N412 Dual-Channel 100 Gb/s PCIe 4.0 x16 SmartNIC remove ATTO Technology Dual Thunderbolt 3 to 10Gb Ethernet Adapter with EU Power Cords remove ATTO Technology ExpressSAS H1280GT Host Bus Adapter remove


SKU

Rating

Rated 0 out of 5

Price

Stock

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A

Additional information

Description

2 x 40 Gb/s Thunderbolt 3 Ports
2 x 16 Gb/s Fiber Channel with Optics
Thunderbolt Certified for Windows & Mac
Advanced Data Streaming Technology
Real-Time Streaming of Full HD & 4K
Low Profile Form Factor
Kensington Security Slot
Locking Power Supply

Network Interface with SFP28 Connectors
Supports Line Speeds up to 25 Gb/s
Use Across Data Center from Core to Edge
ATTO 360 Tuning, Monitoring & Analytics

32Gb Fibre Channel connectivity for high performance SAN storage
Up to 6400 MB/s per channel at 64Gb and 3200 MB/s per channel at 32Gb
Supports FC-NVMe, SR-IOV, NPIV, Virtual Fabric, and Brocade trunking
Advanced Data Streaming (ADS), Fast Path architecture, and MultiPath Director for low latency
Driver support for Windows, Linux, macOS, illumos, VMware, and more

ATTO FastFrame N412 (2 x Transceiver Included) – Technical Specifications

Product SKU	FFRM-N412-000
Form Factor	Low profile PCIe plug-in card
PCIe Interface	PCIe 4.0 x16 (mechanical and electrical)
Number of Ports	2 (Dual-port)
Connector Type	QSFP28
Included Modules	QSFP28 module(s) included
Supported Speeds	10/25/40/50/100GbE
Maximum Throughput	100Gb/s per port
Minimum Latency	Approximately 1µs
Operating Systems Support	macOS, Windows, Windows Server, Linux
Network/Transport Protocol	TCP/IP, UDP/IP
Advanced Features	MSI-X, MSI, DCA, RoCE, NVGRE, PCI-SIG SR-IOV-ready, Erasure Coding offload, RDMA support, end-to-end encryption, RSS, TSS, ADS
Hardware Offloads	TCP/UDP/IP stateless offloads, NVMe over Fabrics target offload (100Gb only)
IEEE Standards	IEEE 802.3ad (Link aggregation), IEEE 802.1qbb (Priority flow control)
Operating Temperature	0-55°C
Maximum Junction Temperature	110°C
Required Airflow	225 LFM DAC, 420 LFM optics
Operating Humidity	10-90% non-condensing
Storage Temperature	-40°C to 70°C
Storage Humidity	5-95% non-condensing
Agency Approvals	FCC Part 15 Subpart B, Class A; EN55022: 2010, Class A; EN55024: 2010
Compliance	EN60950-1, EN60825-1, EN60825-2, RoHS, TAA Compliant
Warranty	3-year standard product warranty
Package Contents	ATTO FastFrame Ethernet SmartNIC adapter, low profile bracket, QSFP28 module(s)
Recommended Applications	AI workloads, GPU computing, core Ethernet infrastructure, video post-production, digital imaging, data analytics, hyper-converged servers
