OWC Mercury Elite Pro Quad 4-Bay USB 3.1 Gen 2 Type-c Raid Thunderbolt 3 - 32TB

  • Mercury Elite Pro Quad RAID

  • Number of Bays 4 x 2.5″/3.5″ Connections 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s)) Compatible Drive Interface SATA, SATA II, SATA III Maximum RAID Transfer Rate 947 MB/s RAID Modes RAID 0, 0+1, 1, 4, 5, JBOD Operating System Support Windows, macOS/OS X OS Compatibility Windows 7 or Later
    macOS 10.6 or Later
    Drives
    Type Hard Disk Drive Interface SATA III Initial RAID Configuration None Pre-Format None
    Electrical
    Power Source Internal Power Supply AC Input Power 100 to 240 VAC, 50 / 60 Hz AC Input Power VAC50 / 60 Hz
    Security
    Encryption None Security Features Kensington Security Slot, Lockable Bay Door
    Environmental
    Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 158°F / -20 to 70°C
    Physical
    Material of Construction Aluminum Cooling 1 x Fan Status Monitoring LED Indicator Dimensions (W x H x D) 5.3 x 7.3 x 9.4″ / 13.46 x 18.54 x 23.88 cm Weight 7.9 lb / 3.58 kg
    Packaging Info
    Package Weight 11 lb Box Dimensions (LxWxH) 13.1 x 10.3 x 9.6″
Guarantee safe & secure checkout
Guarantee & safe checkout
On all order
Category :

Description

OWC Mercury Elite Pro Quad 4-Bay USB 3.1 Gen 2 Type-C RAID 32TB



(RAID 0, 1, 0+1, 4 and 5)

8.0TB MG06ACA Series Enterprise   4 PCS

Add the power of RAID and USB 3.1 Gen 2 Type-C to your compatible Windows or Mac system with the Mercury Elite Pro Quad 4-Bay USB 3.1 Gen 2 Type-C RAID Enclosure from OWC / Other World Computing. Also compatible with Thunderbolt 3 and driven via included SoftRAID XT software, this enclosure has been built with four SATA III drive bays that can each house a single 3.5″ or 2.5″ drive using included drive brackets. Available RAID modes include RAID 0, 1 0+1, 4, and 5, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also supported, which allows the four drives to be used independently.

This volume will be recognized on systems running OS X 10.6 and later, as well as Windows 7 and later. Connectivity to your host system is achieved using an integrated 10 Gb/s USB 3.1 Gen 2 Type-C port, and both USB Type-C to Type-C and USB Type-C to Type-A cables are included to help ensure compatibility with modern and legacy systems. To help ensure a smooth operating environment, the array is built using heat-dissipating aluminum, uses a cooling fan, and its included 100-240 VAC power supply runs at 50/60 Hz to help ensure worldwide compatibility. Also included is a power cable and two front panel keys.

he Mercury Elite Pro Quad’s USB Type-C interface delivers 10 Gb/s USB 3.1 Gen 2 bandwidth and works with most USB Type-C or Thunderbolt 3 Mac or Windows system. Simply connect the Mercury Elite Pro Quad via the included USB Type-C cable to experience next-level performance. If your computer doesn’t feature USB Type-C connectivity, the included USB Type-C to USB Type-A cable brings backward compatibility for machines with legacy USB ports.

Capacity without Compromise

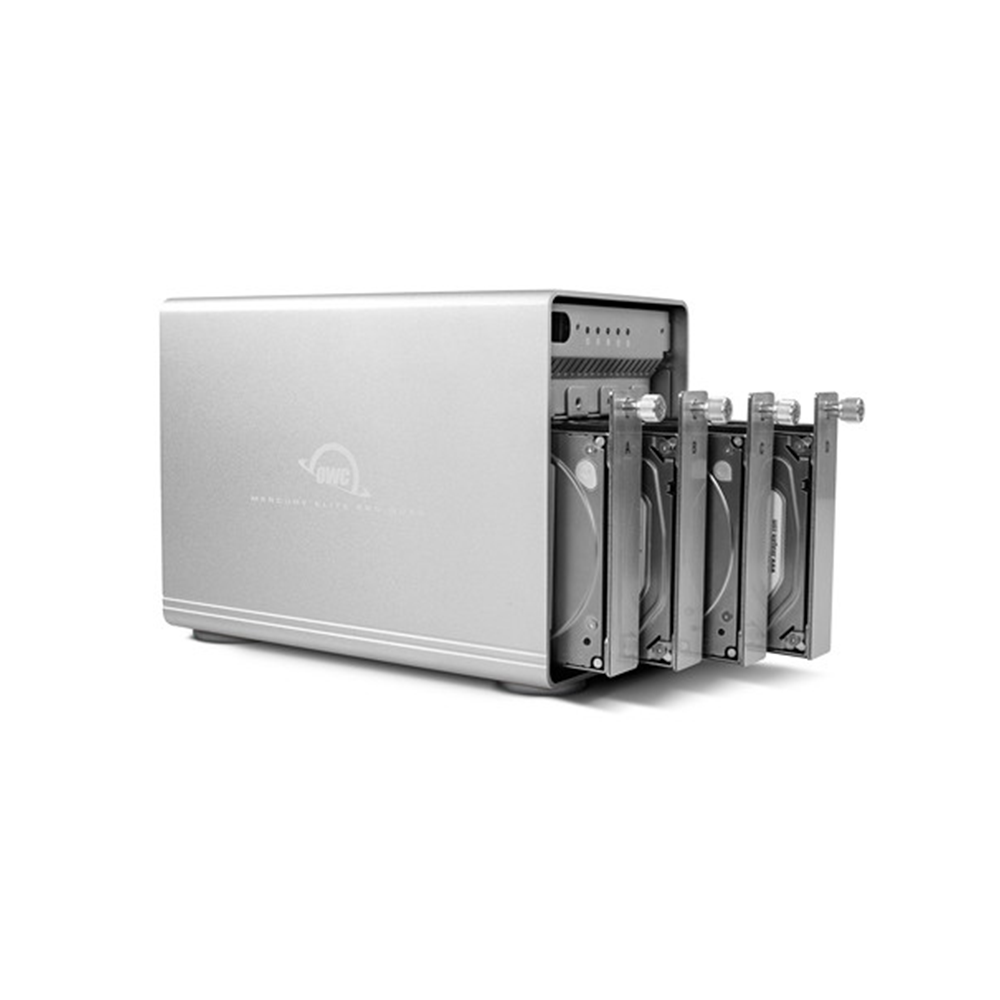

The Mercury Elite Pro Quad’s four universal drive bays are compatible with 3.5″ and 2.5″ SATA III 6 Gb/s, SATA II 3 Gb/s, and SATA I 1.5 Gb/s hard drives.

Speed, Storage, and Security with SoftRAID

The Mercury Elite Pro Quad features advanced RAID capabilities, letting you choose the best option for your workflow. Whether you want massive capacity through a single large array, need maximum performance up to 947 MB/s, or redundancy to keep your data secure, the Mercury Elite Pro Quad gives you the power of choice with OWC’s proprietary SoftRAID engine or Windows-supported RAID modes. The Mercury Elite Pro Quad is also available in a RAID-ready model so you can install the RAID software of your choice.

Designed for Professionals, By Professionals

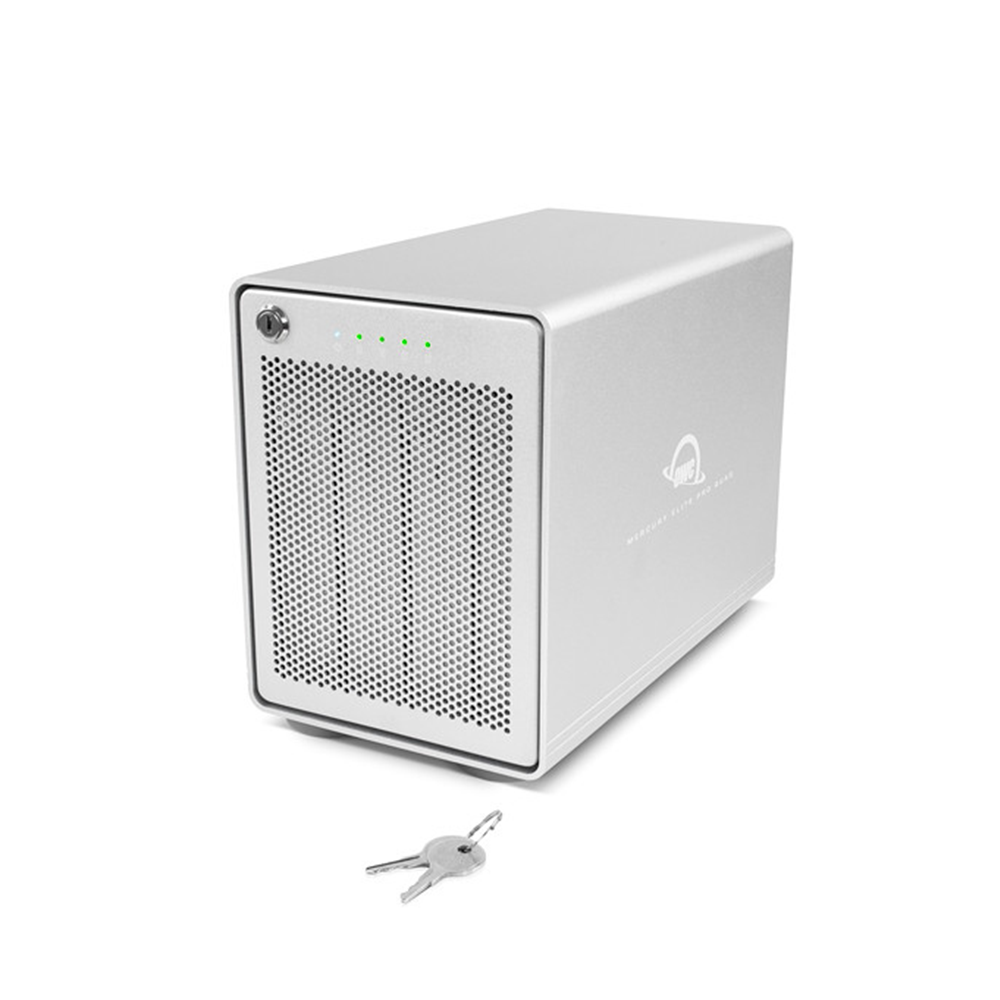

Every detail was considered when designing the Mercury Elite Pro Quad. Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, and vibration-absorbing feet, the Mercury Elite Pro Quad runs cool and quiet, making it suitable for noise-sensitive environments. Front-facing LEDs provide an instant drive-activity snapshot, while the front panel access lock keeps your drives safe. You can even secure the entire drive with the rear-mounted Kensington compatible lock slot. On top of that, this model undergoes OWC’s multi-hour drive “burn-in” performance certification procedure to ensure that your drive arrives operating properly and ready to perform.
