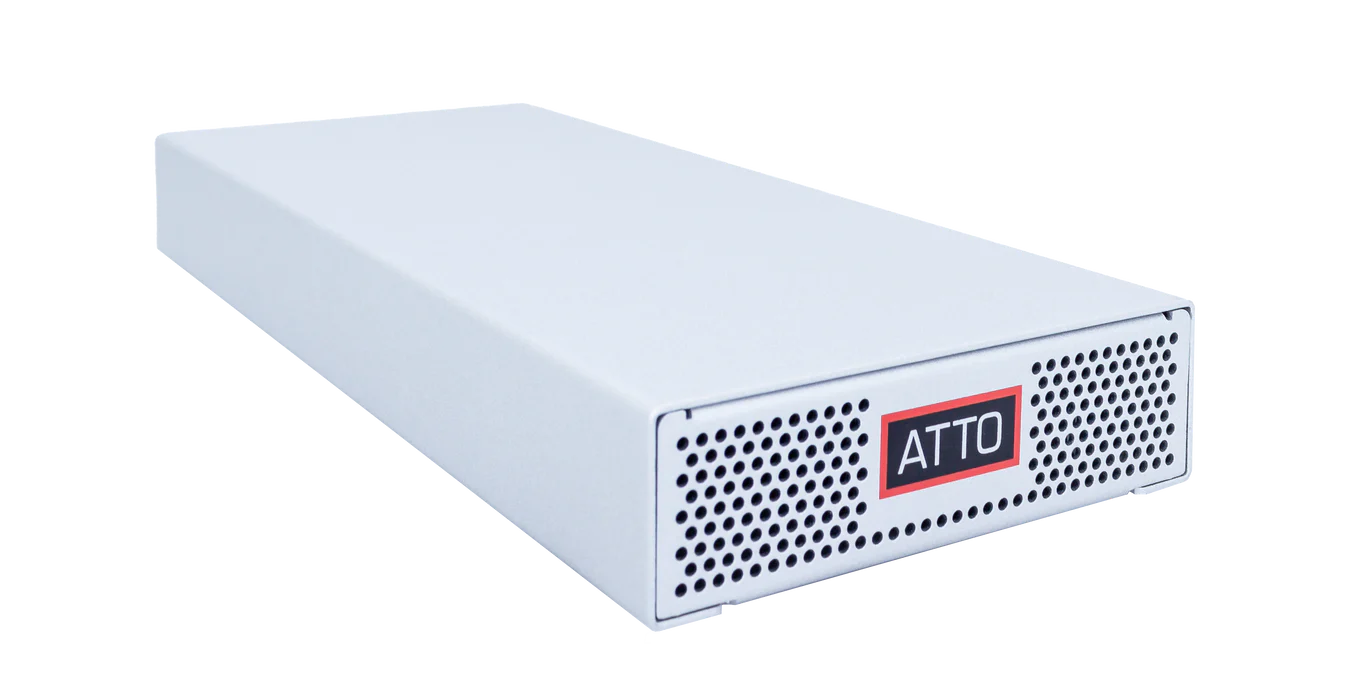

ATTO Technology XstreamCORE ET 8100T-TS0 Dual 10G SFP+ to 1-Port 12G Mini-SAS Intelligent Bridge

Works with iSCSI Ethernet Hosts
4 x Mini-SAS HD Tape Drive Support
2 x 10G SFP+ Inputs
1 x 12G SFF-8644 (SAS-3) Output
Up to 2 GB/s Sustained Transfer Rate
Desk Mountable
ATTO Advanced Data Acceleration
ATTO SpeedWrite Technology
Includes SFP+ Transceivers
Operating System Independent

Ask a Question

Guarantee safe & secure checkout

Free Shipping & Returns : On all order

Category : ATTO Tag : atto Brand: Atto

Description
Reviews (0)

Description

ATTO Technology XCET-8100-TS0 Overview

Supporting up to four SAS-3 tape drives to your network, The ATTO XstreamCORE ET 8100T-TS0 Intelligent Bridge helps to back up your important data and keep it safe from catastrophic events. Acting as an external desktop adapter, this bridge allows your business to deploy and share tape storage over a 10 Gb/s Ethernet iSCSI network with two SFP+ optical slots and SFP+ optical cable transceivers. An LTO-7 or later compatible tape drive may be connected through the 12 Gb/s mini-SAS (SFF-8644) connector.

The ATTO Distributed Software Architecture enables up to 2 GB/s sustained transfer rates by prioritizing transaction efficiency and high-performance memory management. Configure your XstreamCORE ET 8100T-TS0 using the web-based command line interface (CLI).

Please be aware that this device is operating system independent, and an iSCSI initiator is required.

For iSCSI Networks

iSCSI Network Protocol enables Ethernet connectivity and maximizes interoperability

ATTO Distributed Software Architecture

The ATTO Distributed Software Architecture (ADSA) is a self-optimizing real-time operating system designed specifically for embedded hardware. ADSA acts as a translator of one protocol to another and integrates advanced protocol, error handling, and application requirements into an existing infrastructure. The onboard data acceleration technology features multiple parallel I/O engines with end-end I/O processing and intelligent management of hardware buffer allocation.

ATTO Advanced Data Streaming

ATTO Advanced Data Streaming provides controlled acceleration for smooth data streaming.

ATTO SpeedWrite Technology

ATTO SpeedWrite technology improves SAS tape write performance by up to 20%

Compact Design

Small and portable therefore equally as useful in the field as they are on a desktop or in a server room.

Easy Operation

Automatic tape drive mapping via a simple management console for quick set up and smooth operation.

Items Included

ATTO Technology XstreamCORE ET 8100T-TS0 Dual 10G SFP+ to 1-Port 12G Mini-SAS Intelligent Bridge
Power Adapter
2 x SFP+ Transceiver
Limited 3-Year Manufacturer Warranty
